Semi-automatic welding machine

Oakley Industrial Machinery brings extensive expertise in coil preparation and offers tailored solutions for coil-pin welding in heating elements production. Depending on production requirements, OIM provides assembly units with manual, semi-automatic, or fully automatic operation.

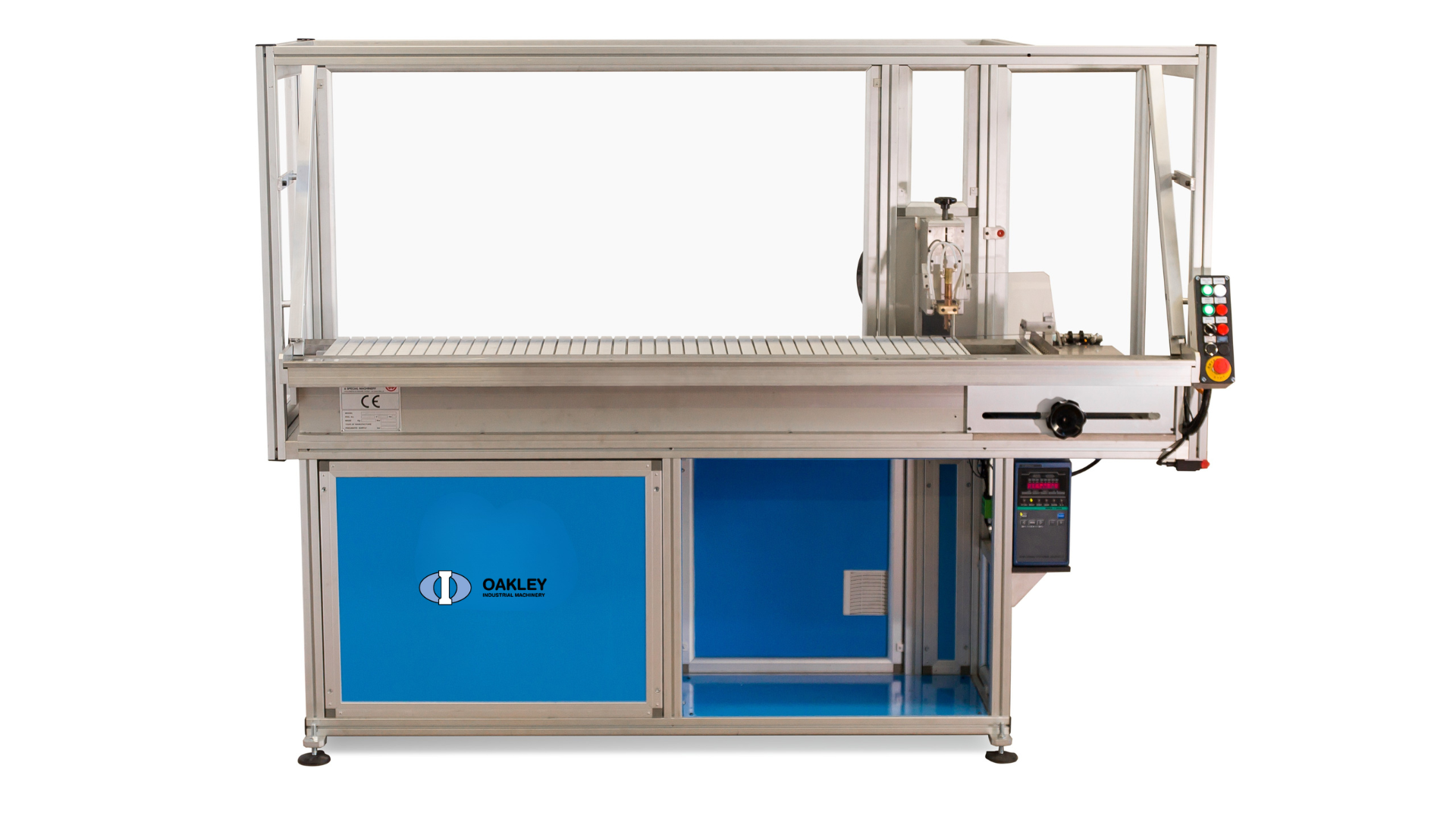

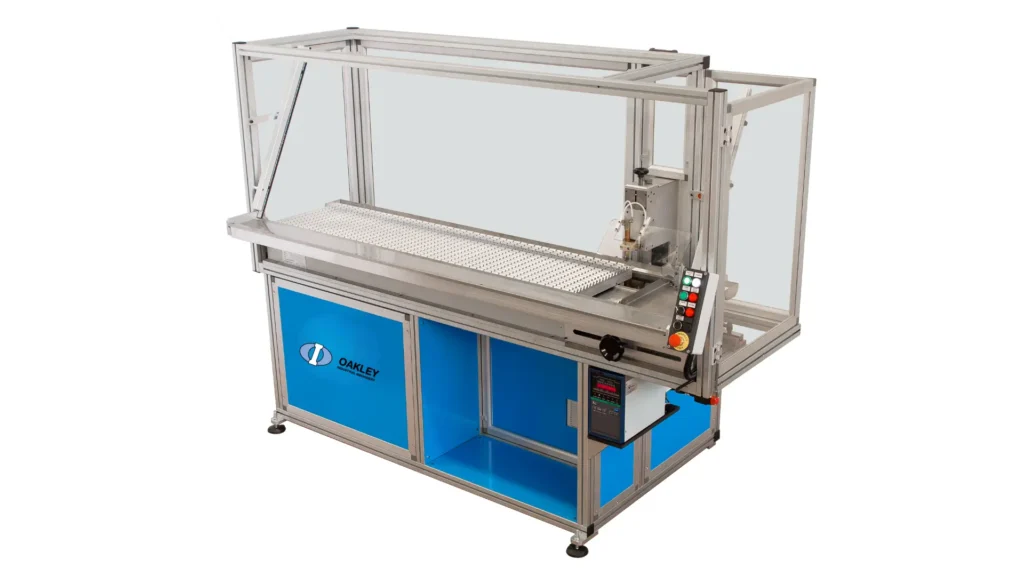

The semi-automatic coil-pin welding machine automatically welds coils to terminal pins after the operator manually assembles the components. Loaded onto a walking beam conveyor, each unit is individually transferred to the welding station and then to the unloading point. A pneumatic alignment system beneath the electrode ensures precise and repeatable welds, maximizing productivity and consistency.

Semi-Automatic Coil - Pin Welding

Advantages

The concrete advantages that make the difference

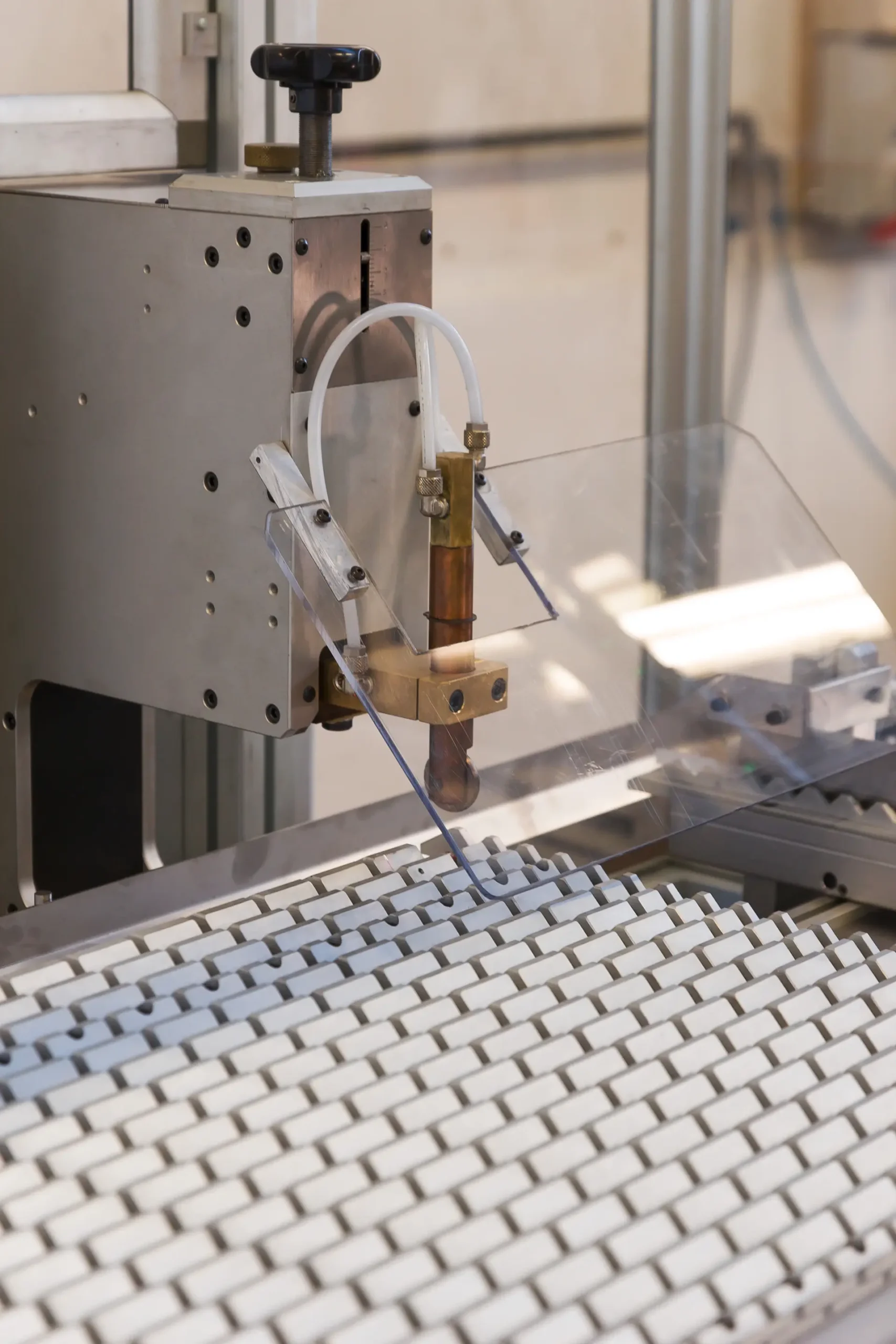

Enhanced productivity

Welding is efficient and independent of operator skill.

Accurate coil welding

Spot welding is consistently accurate at the defined points.

Improved workplace safety

Automation reduces manual handling and enhances operator safety.

Details

Discover all the details of the machine

WALKING BEAM TO TRANSFER THE PRE-ASSEMBLED TERMINAL PIN/COIL from the loading position to the welding station. After welding, the parts are discharged into a stainless steel container.

WORKING TABLE IN STAINLESS STEEL complete with a device to unload and guide the terminal pin/coil assembly onto the walking beam.

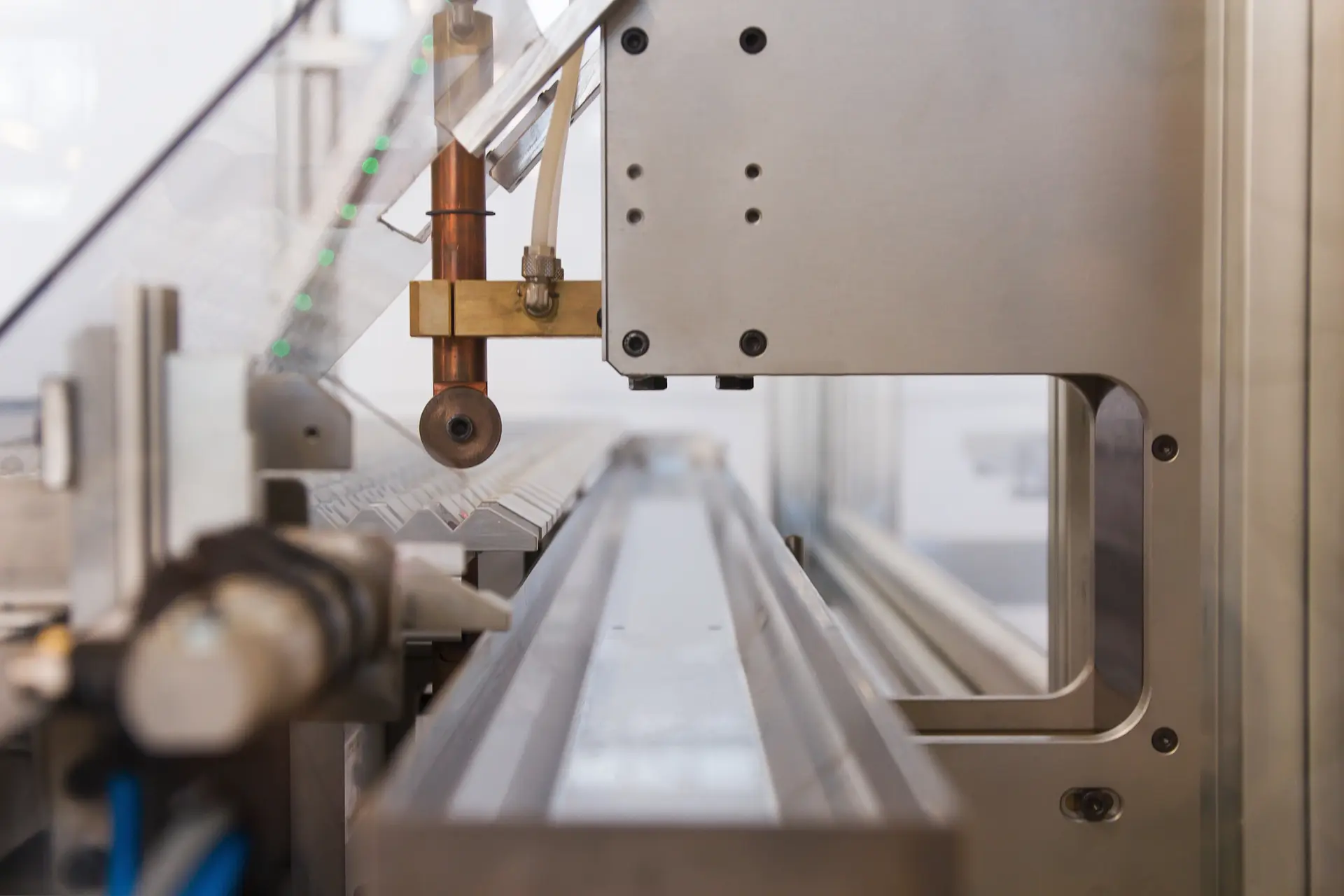

PNEUMATIC DEVICE TO ALIGN THE TERMINAL PIN/COIL ASSEMBLIES under the welding electrode to guarantee repeatability of the welding process, ensuring every weld is made at the same point on the coil.

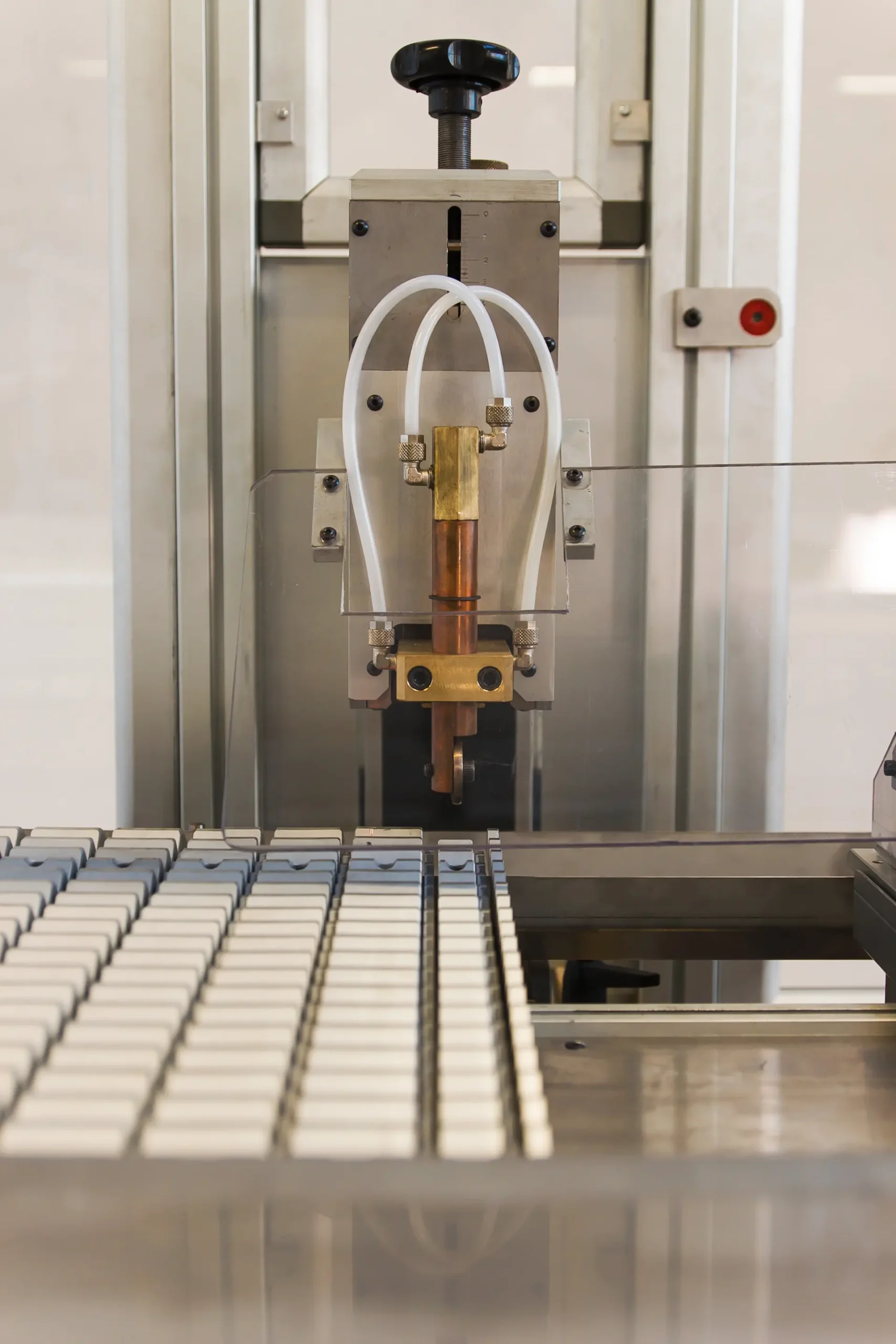

15 KVA SPOT WELDER complete with process control.

Technical characteristics

Cycle time
3-4 sec.
Terminal pin length
1.8-8" (45-200 mm)
Terminal pin diameter
.10-.16" (2.5-4 mm)
Coil length
2-47" (50-1200 mm)
Coil OD
.07-.16" (1.8-4 mm)
Power supply
V to be defined
Installed power
15 KVA
Pneumatic supply
6 bar
Water supply
.53 gal/min (2 l/min)
Welding machine
to be defined
Dimensions
91.5 × 49 × H 70" (2325 × 1245 × H 1770 mm)
Weight
882 lb (400 kg)
Set-up time*
2-3 min. (see technical data sheet)
