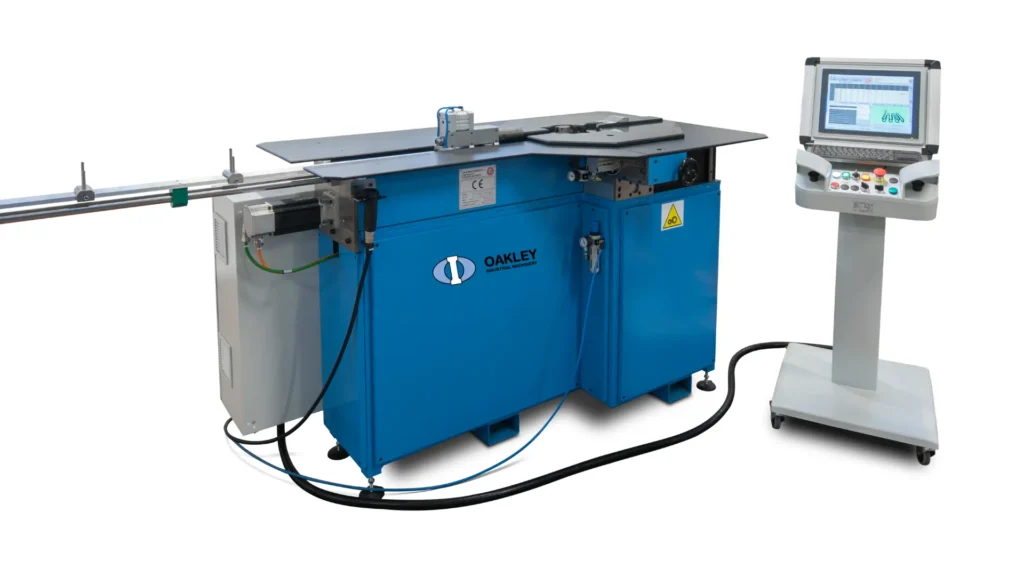

The numerically controlled universal bending machine from Oakley Industrial Machinery is a fully programmable solution for bending heating elements with one or two bending units. It can perform automatic bending on a single plane or multiple planes, accommodating a wide range of shapes, sizes, and bending angles.
Using OIM’s 3D-graphic programming software, operators simply enter the geometric data of the heating element. The machine automatically generates the bending program, leveraging previous bending experience stored in its database. Preset programs allow the machine to achieve accurate dimensional tolerances from the very first element, minimizing setup time and ensuring consistent, repeatable results.
The concrete advantages that make the difference

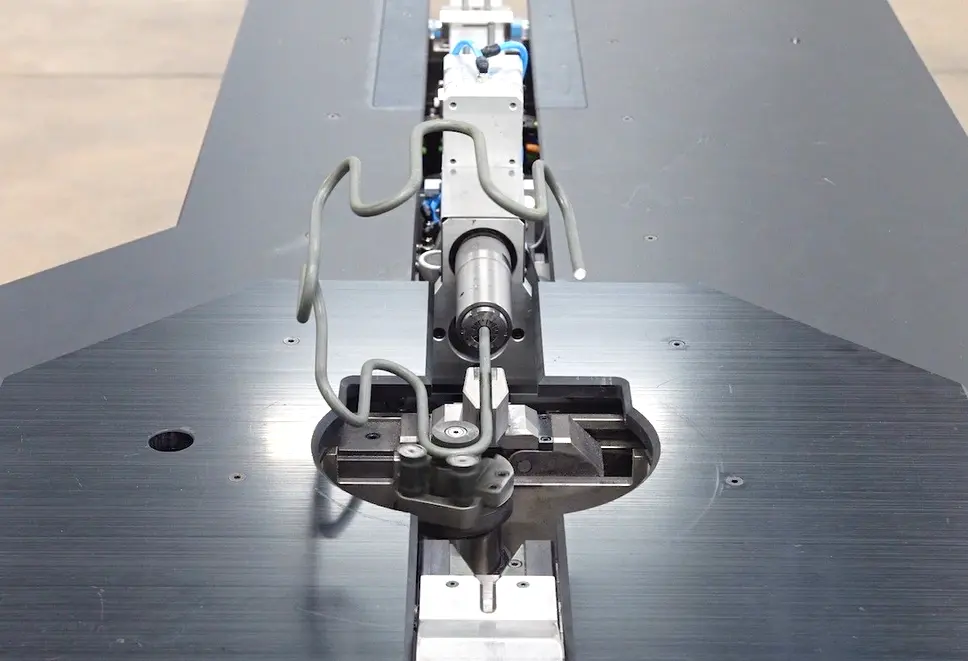

By entering standard bending data, the machine automatically and reliably generates the execution program, drawing on a database of prior bending experience. This delivers a correct part on the first try, eliminating the need for manual adjustments.

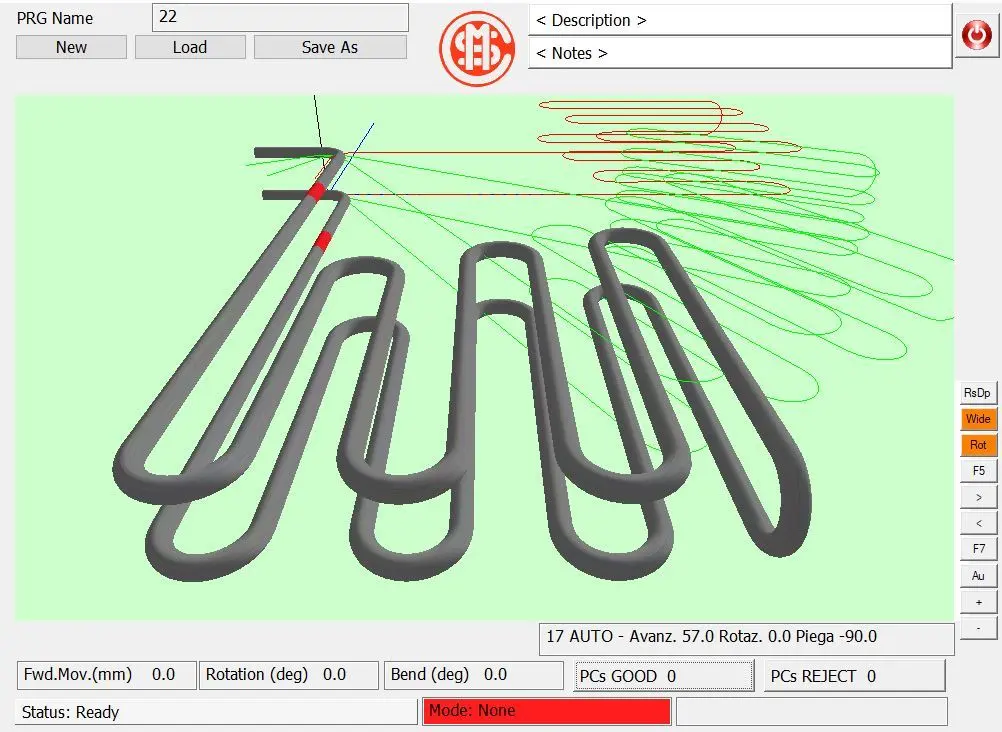

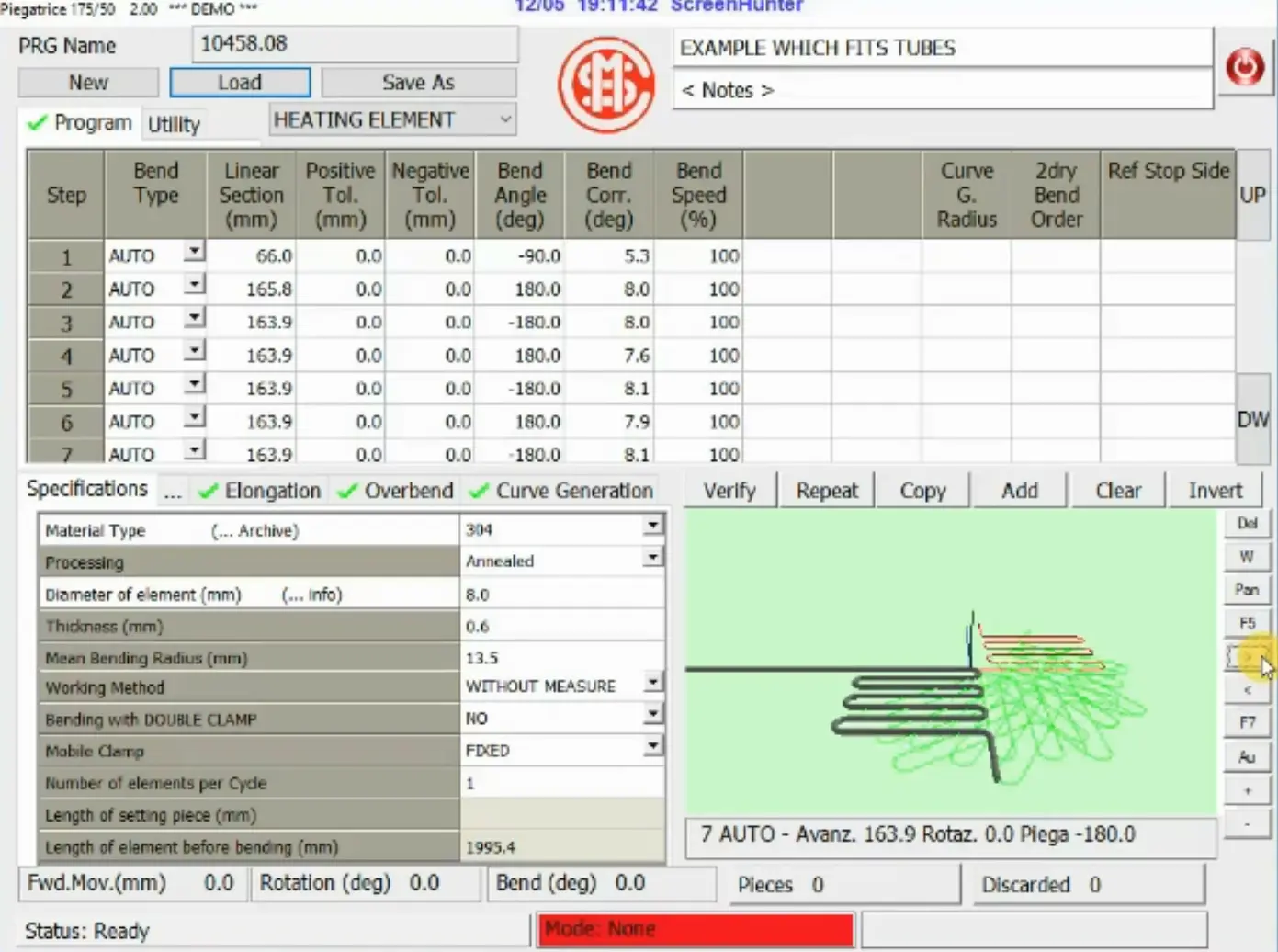

Our 3D graphic programming software lets you create and run the bending program instantly — just enter the heating element’s geometric data. Parts can also be simulated before production, guaranteeing the best result with zero risk of collisions.

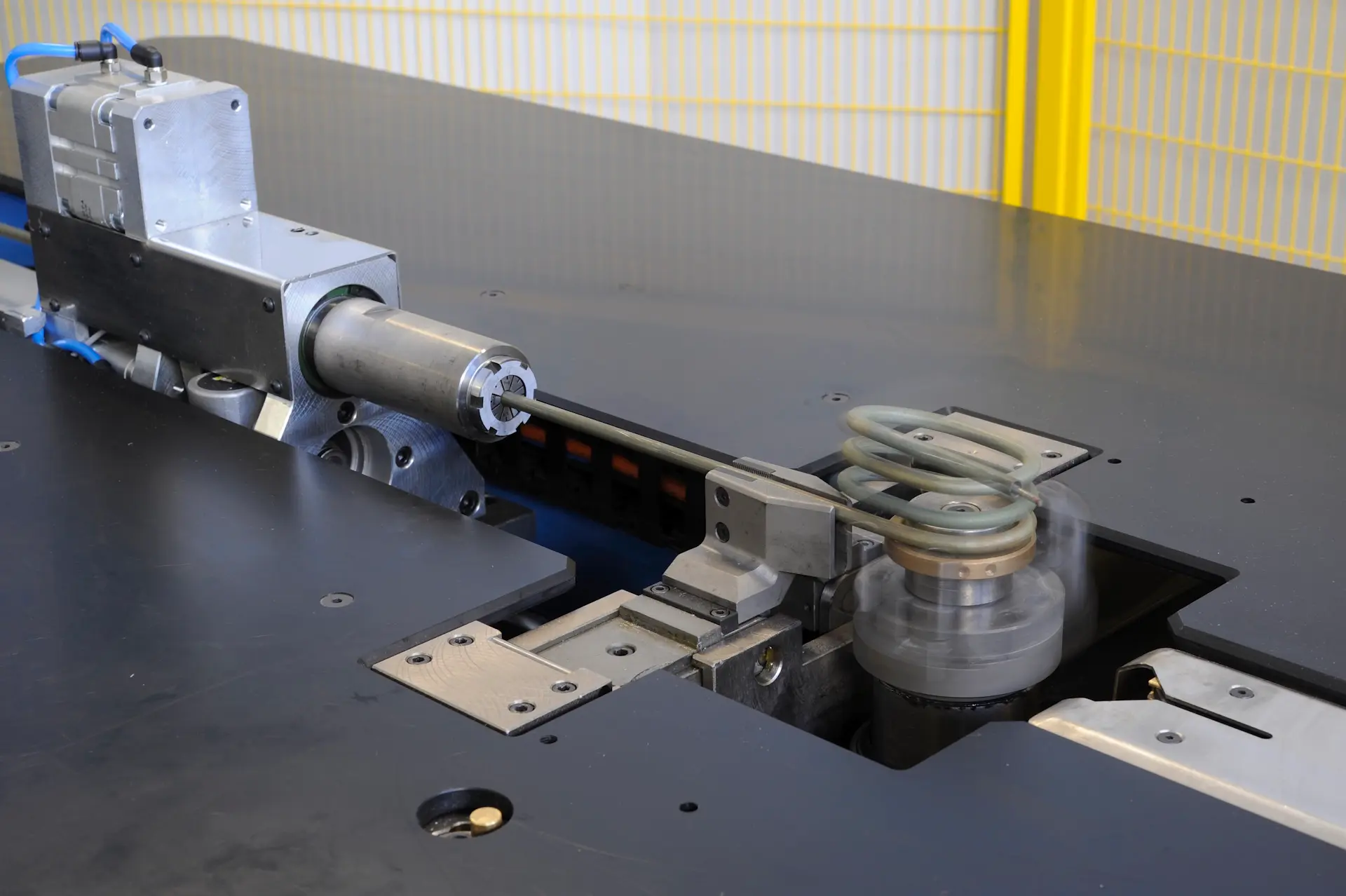

Main movements are controlled by electric axes, with all position and power parameters saved directly with the part program. Fewer mechanical adjustments mean faster setup and precise, repeatable positioning at every changeover — no specialist operator required.
An optimized design cuts maintenance needs and component wear, making the machine more reliable and dependable over the long run.
Simple, fast programming with storage for up to 10,000 programs.

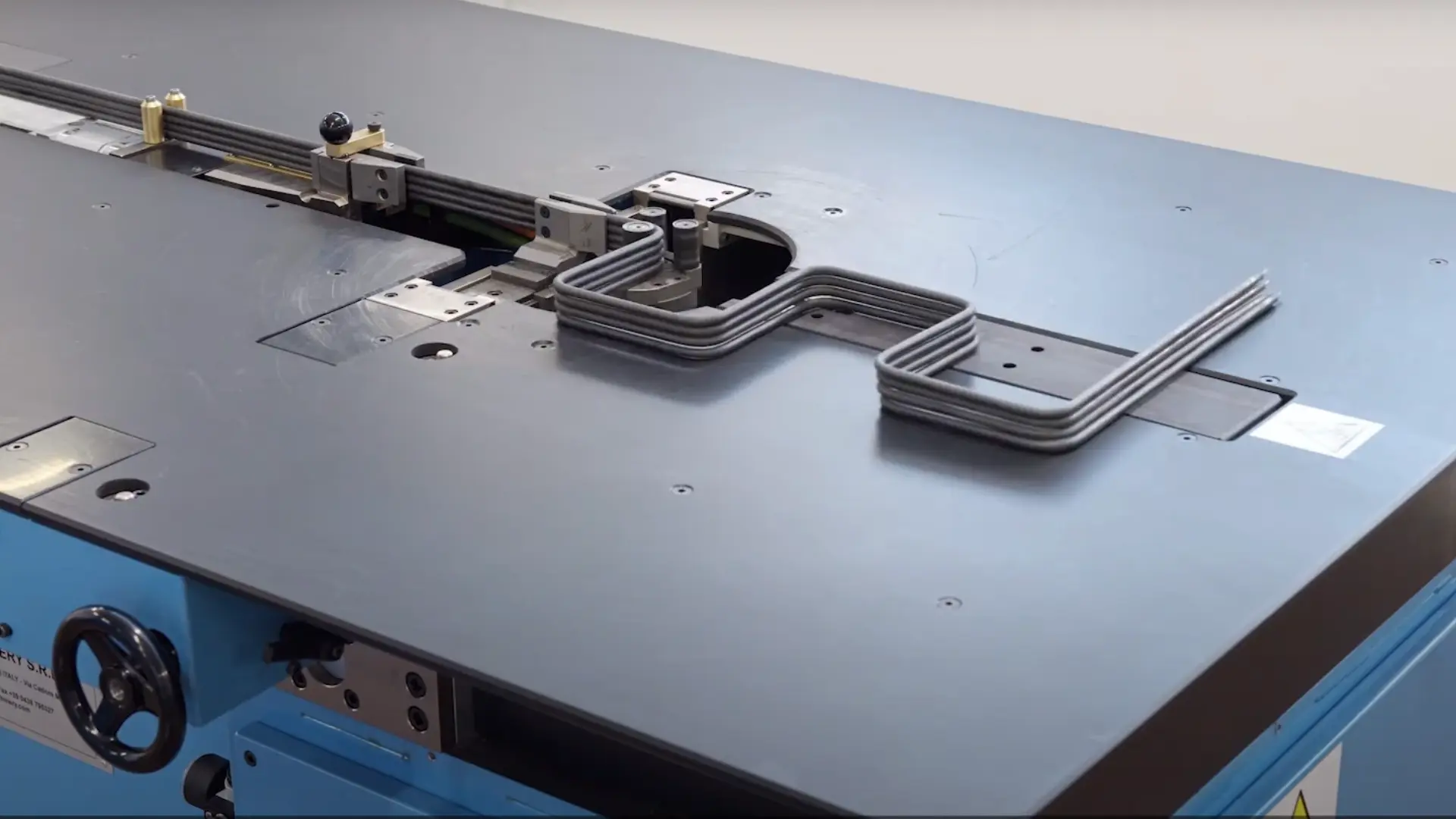

The machine bends heating elements of varying lengths, with tolerances programmable for each branch of the element.

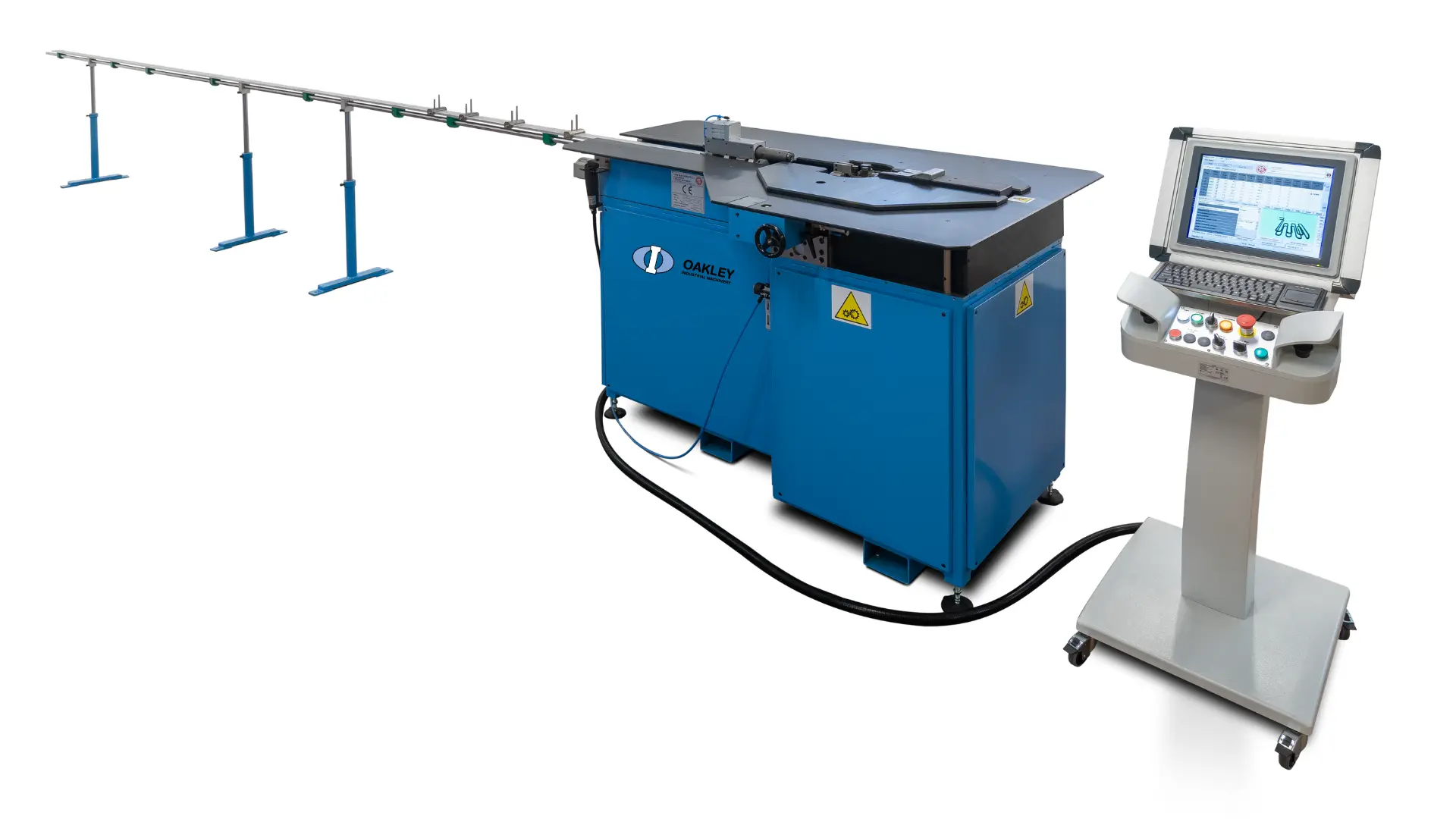

Discover all the details of the machine
CONTROL PANEL ON CART-MOUNTED SUPPORT
The control panel includes a computer, touchscreen, and keyboard, with product visualization for each bending step.
HORIZONTAL BENDING BENCH STRUCTURE

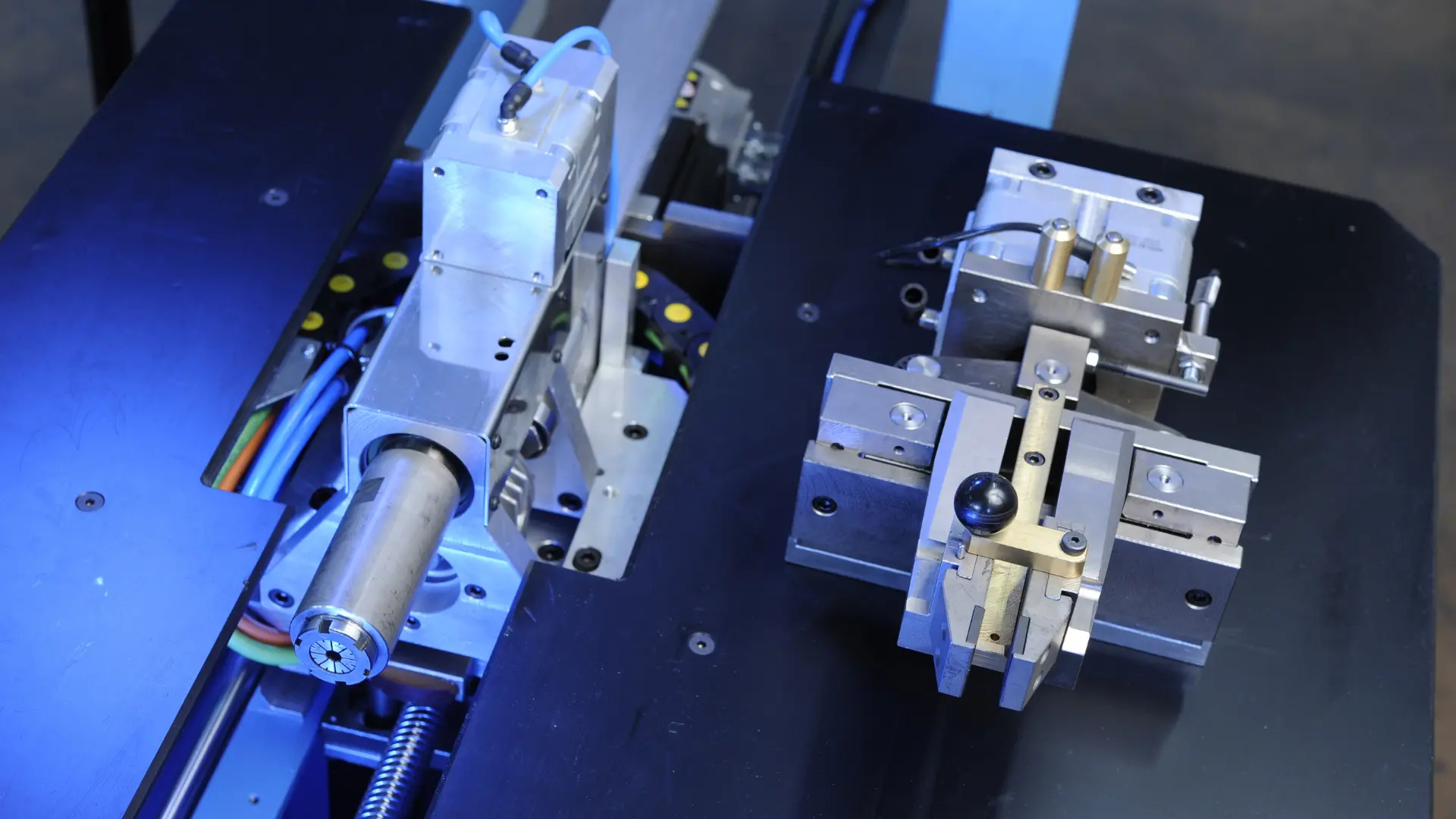

PNEUMATICALLY ACTUATED TRAVELING CLAMP
The traveling clamp is driven by a brushless motor (1st numerically controlled axis).
PNEUMATIC FIXED CLAMP
The pneumatic fixed clamp is used to secure the heating element during the bending cycle.
NUMERICALLY CONTROLLED BENDING UNIT
(2nd controlled axis)
PRE-ARRANGEMENT FOR ROTATING TRAVELING CLAMP
(3rd controlled axis)
NOTE
The universal CNC bending machine includes an electronic device for measuring heating element length, as well as a dedicated safety PLC.
Discover all the optional for the machine

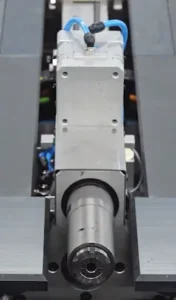

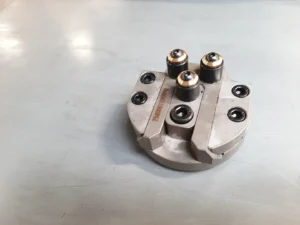

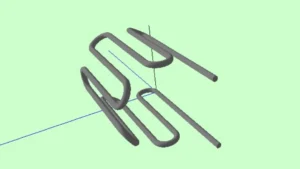

The rotating clamp offers the possibility to produce 3D (multiplane) elements in automatic mode (for elements with a diameter up to 12 mm The clamp is supplied with a bending roll for 3D elements with OD=18 mm and a clamp for a diameter (to be defined).

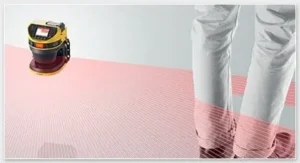

It offers the possibility to delimit a programmable work area and launch the bending cycle without two-hand control.

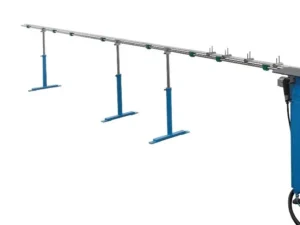

A wide range of extensions from 1000 to 6000 mm to be added to the base model.
065.08.146-00: Bending roll (for standard head). PM00001555*0: Bending roll for 3D elements (for standard head with rotating clamp). P3967*0: Bending roll for Heavy Duty head. PM00001371*0: Clamp for rotating unit (in addition to the clamp supplied with the machine).
Bending head for small radii, adjustable, for bending machine mod. 170/50 e 171/50 (bending roll diameter range 12 ÷ 17 mm). Max element outer diameter: Ø8,5 mm.
to a remote database, to allow for saving and backup of the bending programs.
The rotating clamp offers the possibility to produce 3D (multiplane) elements in automatic mode (for elements with a diameter up to 12 mm The clamp is supplied with a bending roll for 3D elements with OD=18 mm and a clamp for a diameter (to be defined).
Minimum length of heating elements — with measure | 20" (500 mm) |
Minimum length of heating elements — without measure | 12" (300 mm) |
Maximum length of heating elements | 118" (3,000 mm) — extendable up to 354" ( 9,000 mm) with optional extensions (see options) |
Maximum difference in length of heating elements | 7.08" (180 mm) |
Maximum length of terminal pin | 1.6" (40 mm) |
Minimum programmable length of last straight section (limited by the physical clearance between clamp and bending center) | 1.8" (45 mm) - 5" (130 mm) with Heavy-Duty Head |
Number of programmable bends per cycle | 80 |
Max. bending speed | 360°/sec |
Tolerance on diameter (when bending 2+ elements at a time) | ±.0023" (0,06 mm) |
Power supply | V to be defined |
Pneumatic supply | 6 Atm |
Installed power | 3 KVA |
