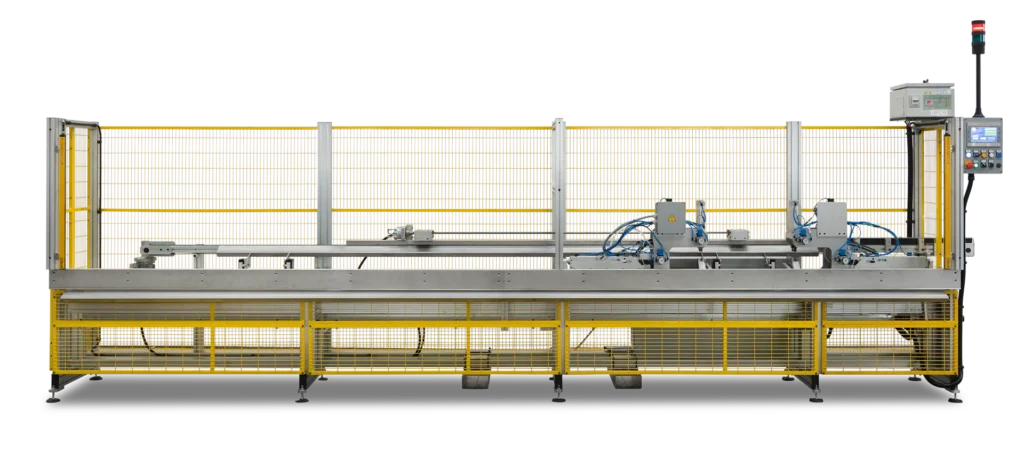

Every heating element leaving the rolling mill can be fed straight into the plug removal station, where the terminal is pre-heated and the plug extracted by two pneumatic grippers automatically, cycle after cycle. No manual handling, no bottlenecks, no risk of damaged terminals slowing down your production.
The result: a cleaner process, with no carbonaceous residues from burnt plugs, and a station that integrates directly into your existing line — so you scale output without adding headcount or complexity.
The concrete advantages that make the difference
Eliminates the need for operator intervention, improving efficiency for medium-to-high production rates.

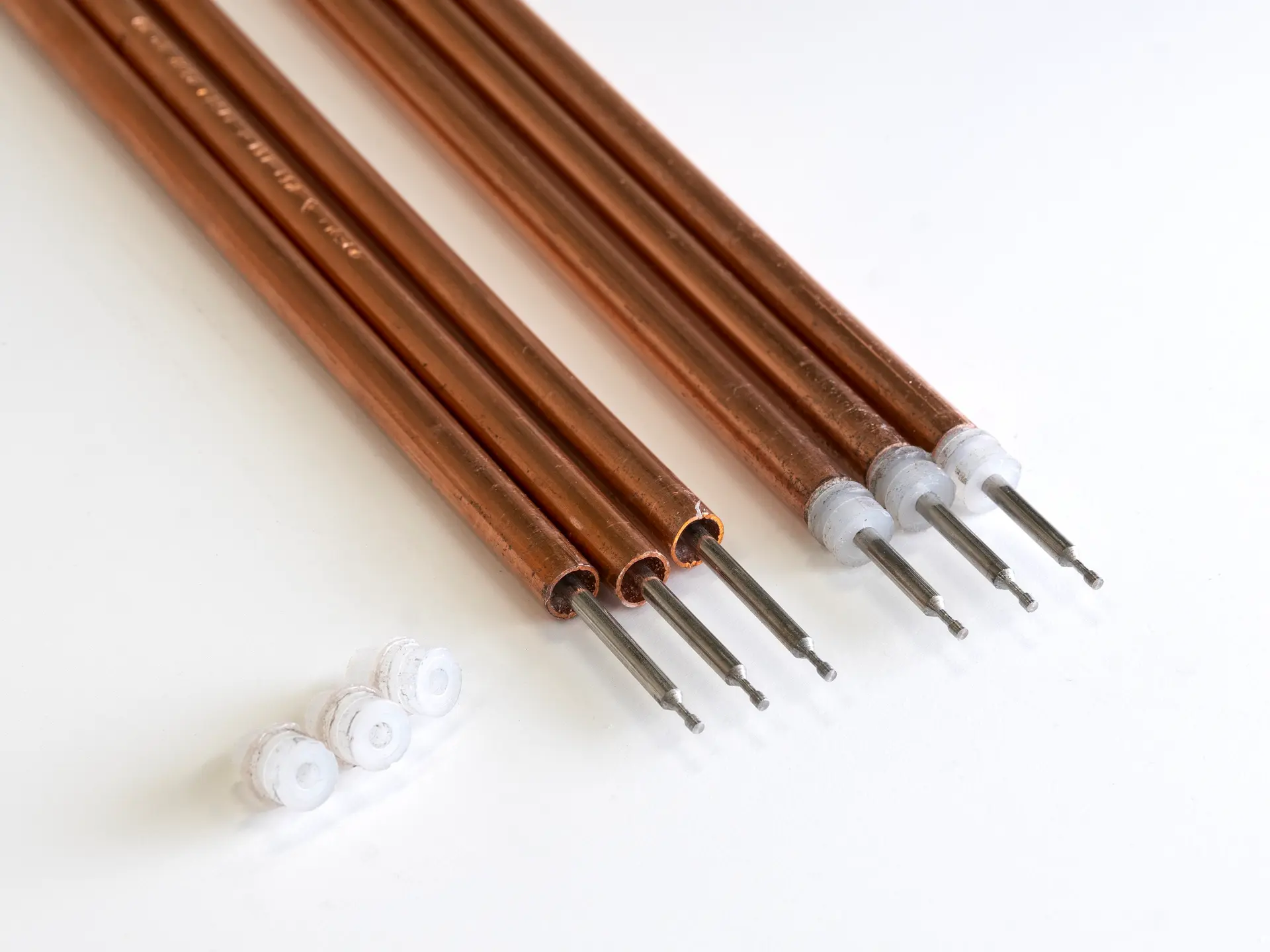

Prevents carbonaceous residues from potential plug combustion.
Easily connects with other machinery in the heating elements production process.

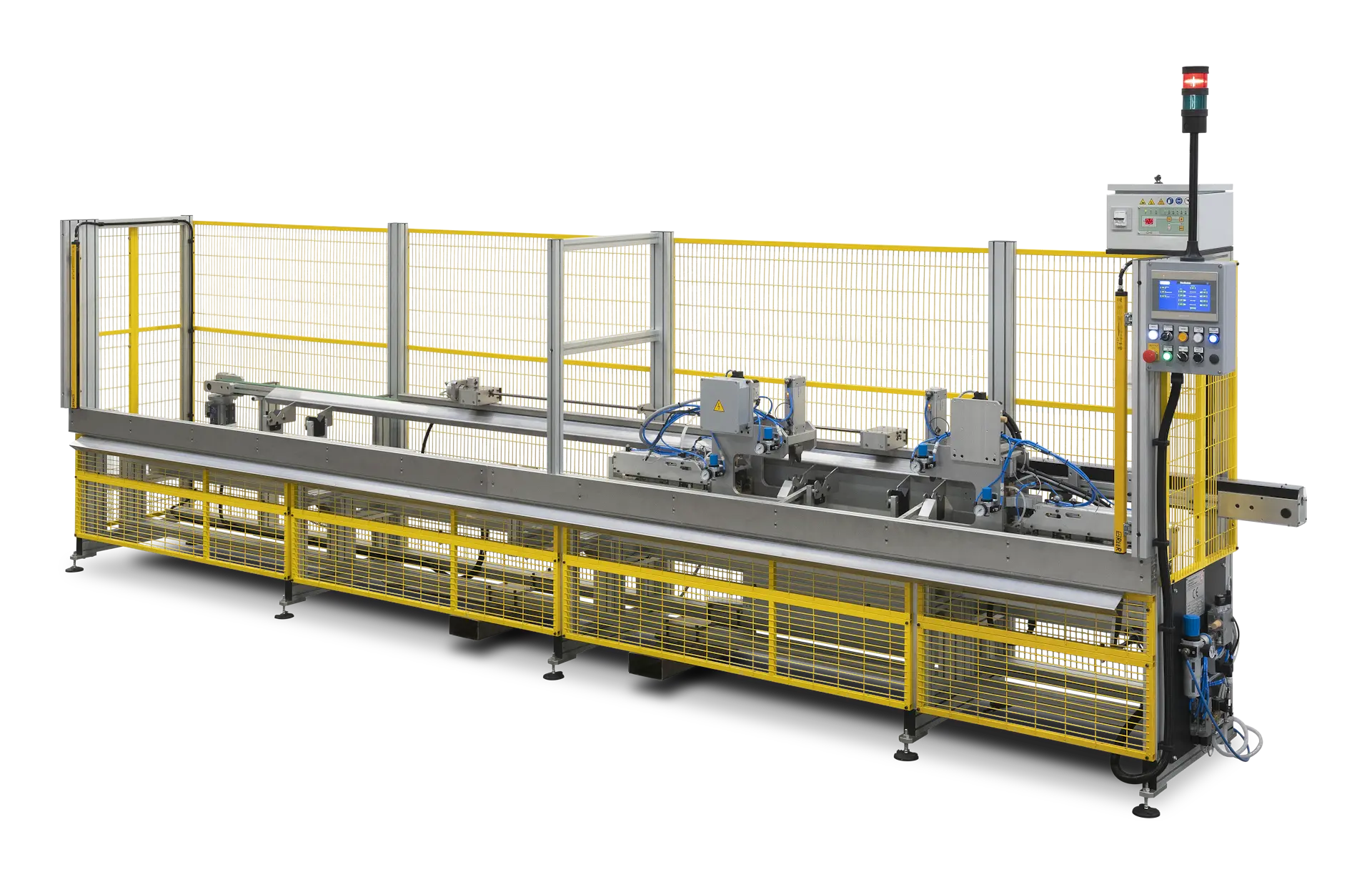

Discover all the details of the machine
ELECTRONIC CONTROL OF THE HEATING UNIT
OPERATOR CONTROL PANEL
ROLLING MILL EXIT COLLECTION BELT

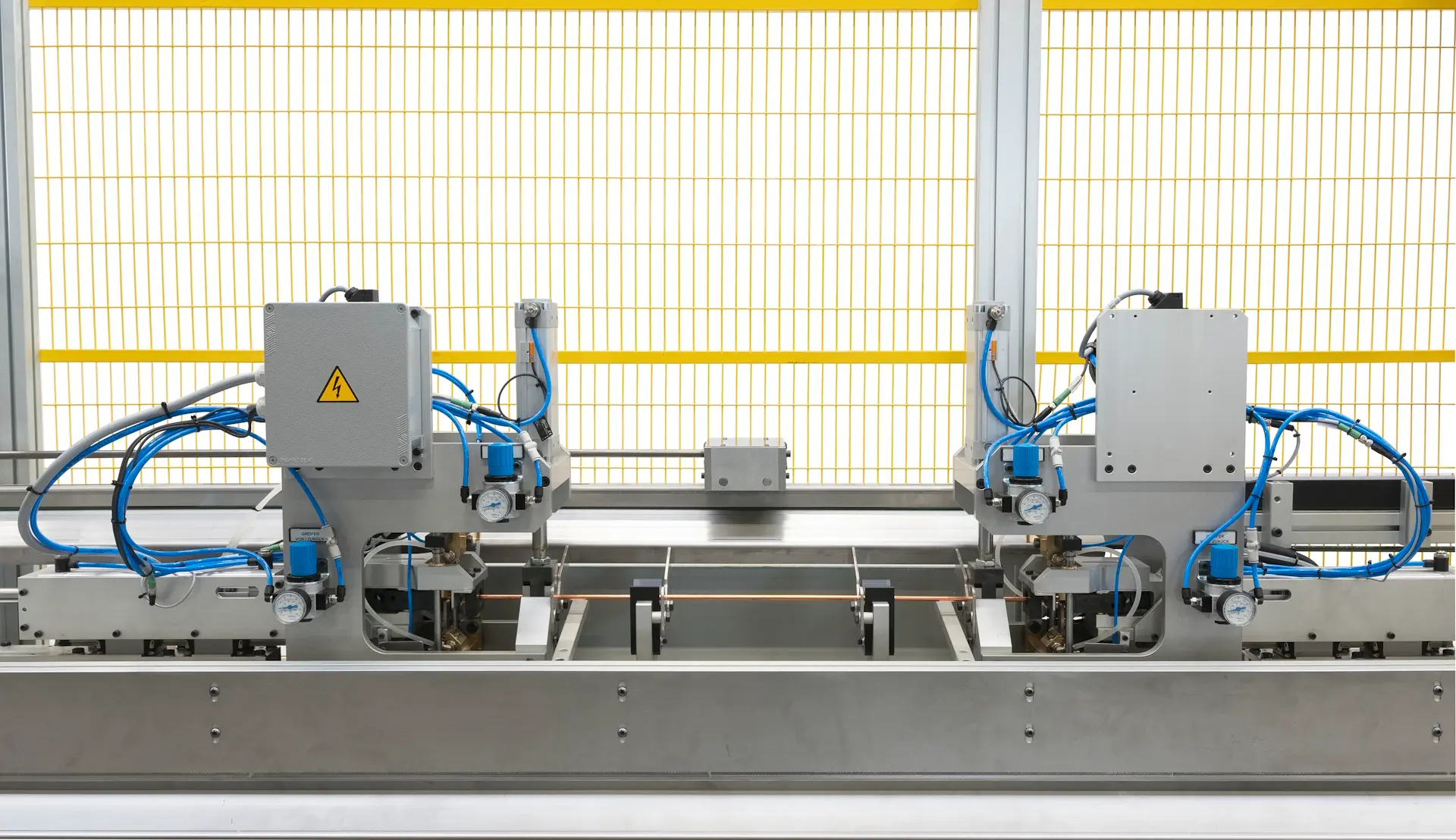

FIXED PLUG REMOVAL UNIT
MOBILE PLUG REMOVAL UNIT
GRIPPING CLAMP
EXTRACTION CLAMP
ELECTRODES AND ELECTRODE HOLDERS
Discover all the configurations of the machine
Heating element length | inch/mm to be defined |
Shape of the plug | draw to be defined |
Diameter of heating element (one diameter) | .23-.39” (6-10 mm) |
Power supply | V to be defined |
Pneumatic supply | 6 bar |
Cycle time | 6-12 sec. |
Weight | 353 lb (160 kg) |
Installed power | 4,5 KVA |
