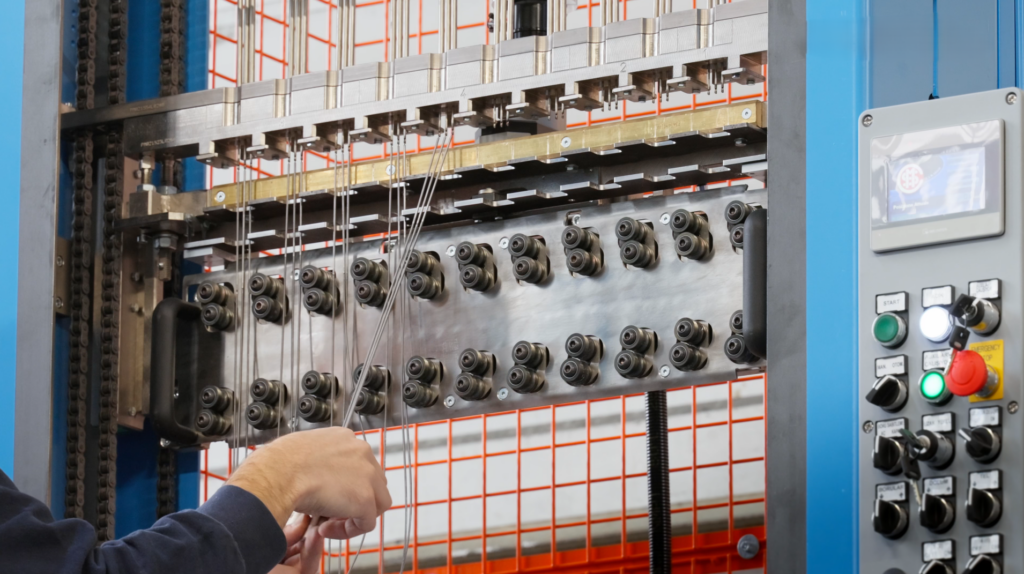

Flat Heating Elements Filling Machine

Give your flat and oval heating elements the precision they need to perform under pressure. This filling machine packs magnesium oxide into oval tubes with tight, even compaction and a resistive wire that stays perfectly centered, so every element you produce holds up in food processing, aerospace, chemical/pharma, and energy applications.

You get two proven technologies in one machine: the three-tube filling system and electromechanical vibration, now adapted to oval/flat tube geometry. Choose between through-pin and single-tube (one open end) configurations depending on what your production line needs.

Filling Machine for Flat and Oval Tube Heating Elements

Advantages

The tangible benefits that make a difference

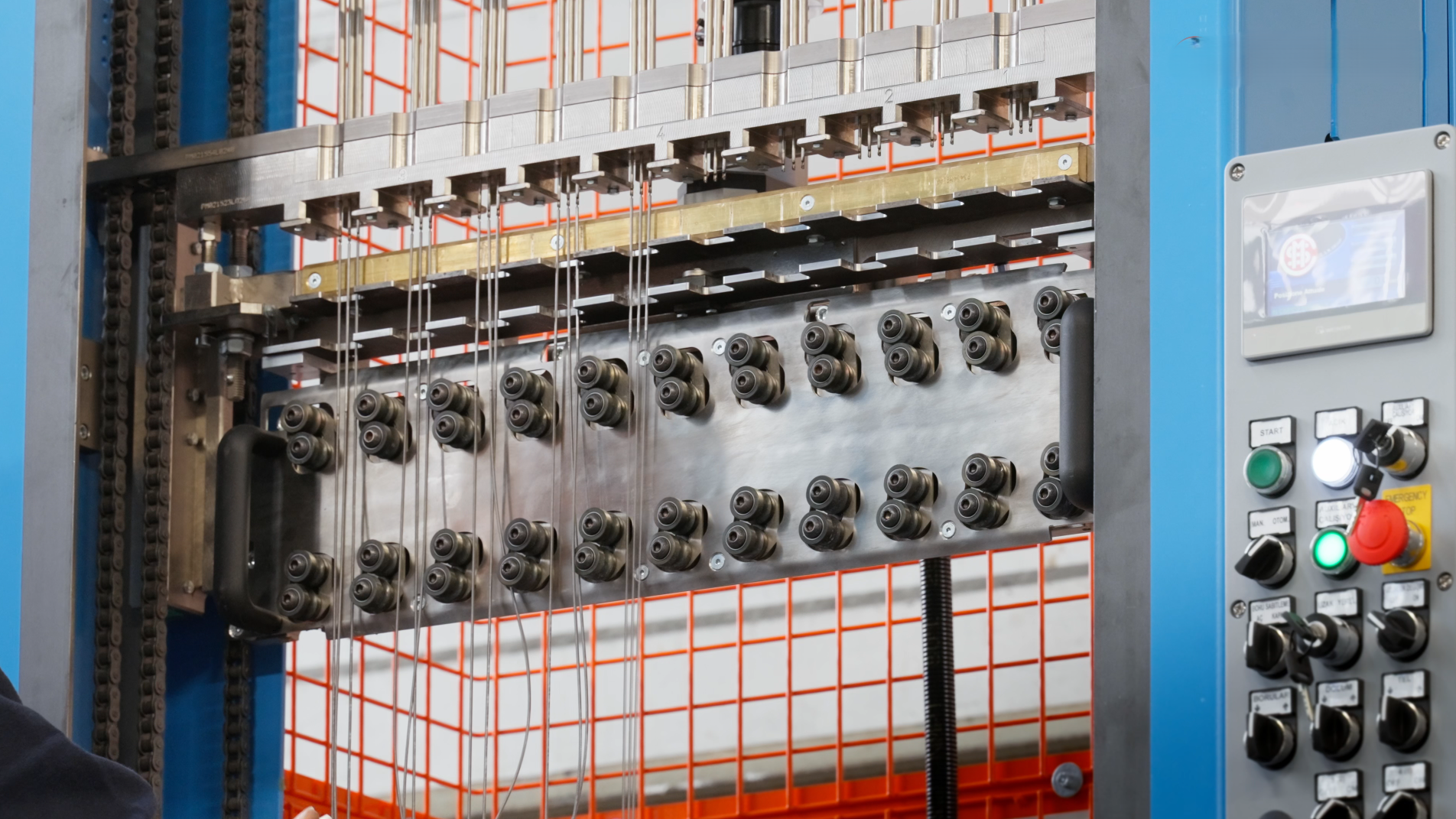

Reliable results, every cycle

You’re working with the same oxide filling systems we have refined for years, now built for the oval tube’s unconventional shape. That means your flat elements meet the same quality and precision standards as traditional tubular ones, cycle after cycle.

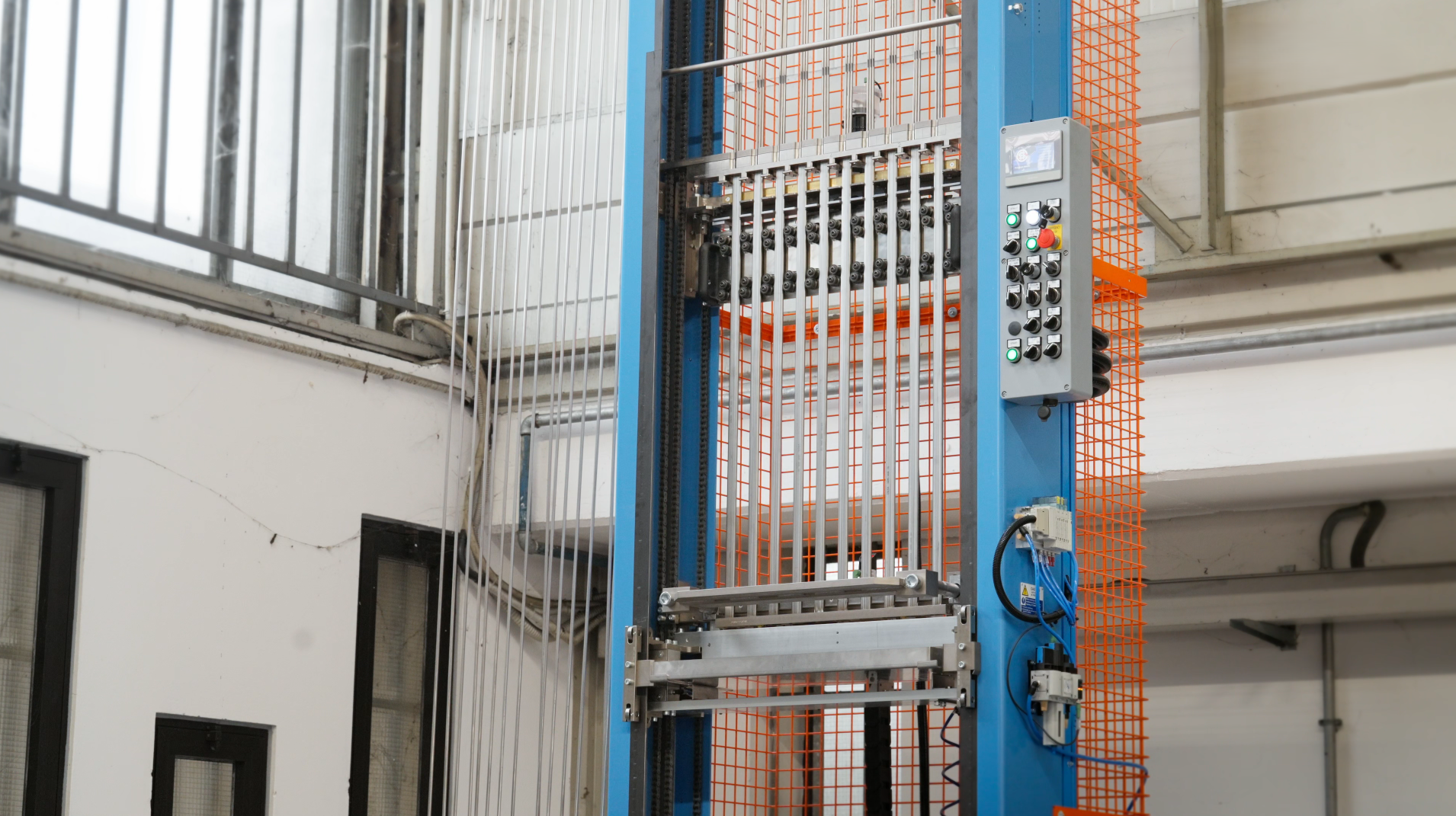

One machine, two production paths

Switch your cycle setup and move from standard flat tubular elements to single-tube flat elements without swapping equipment. You get more flexibility from a single investment and can respond faster to changing order requirements.

Consistent fill, even under complex setups

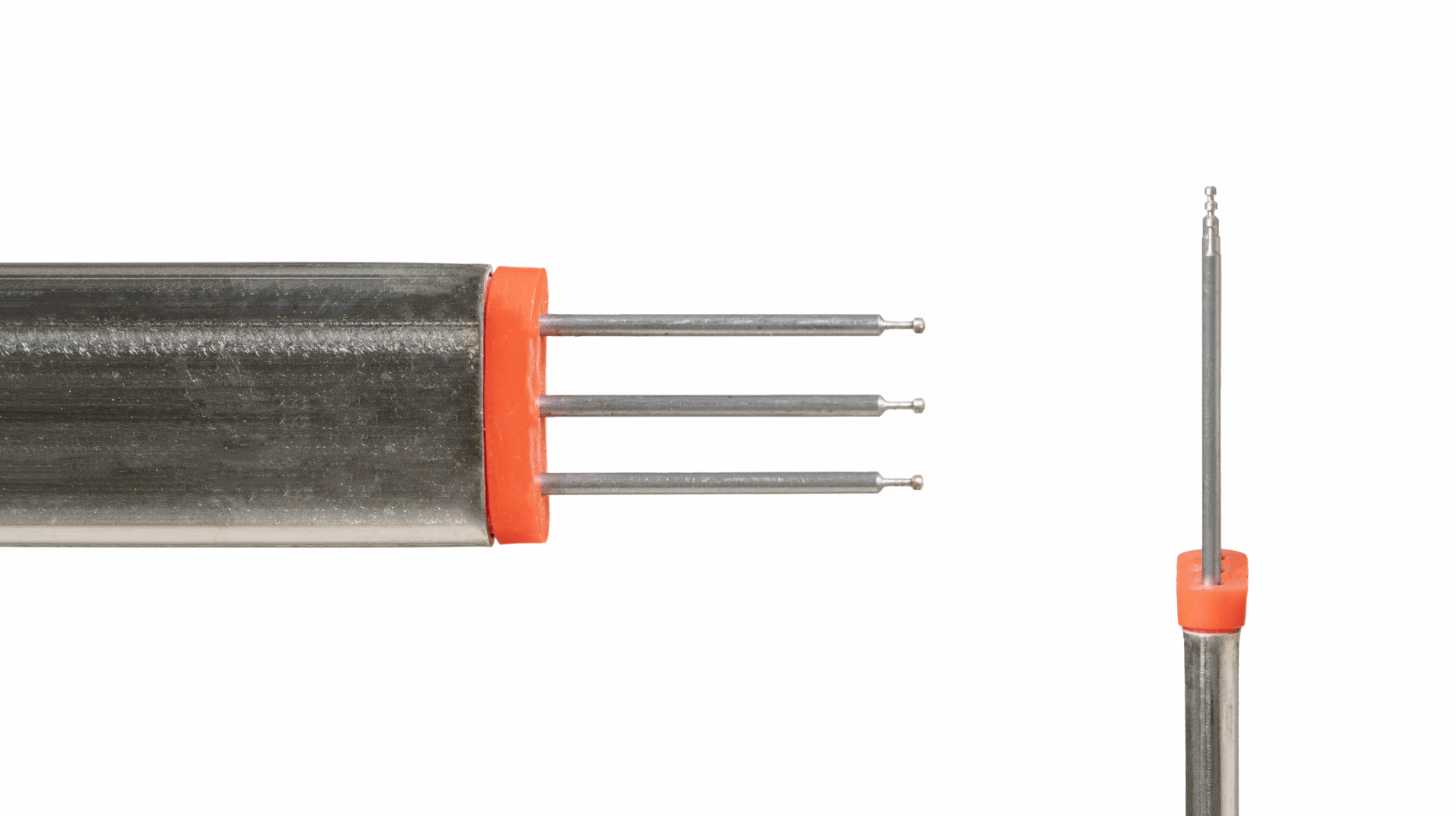

Even with configurations up to three output pins, you get uniform oxide compaction and a wire that stays centered on every single-tube element. That consistency is what keeps your finished heating elements performing reliably over their working life.

Details

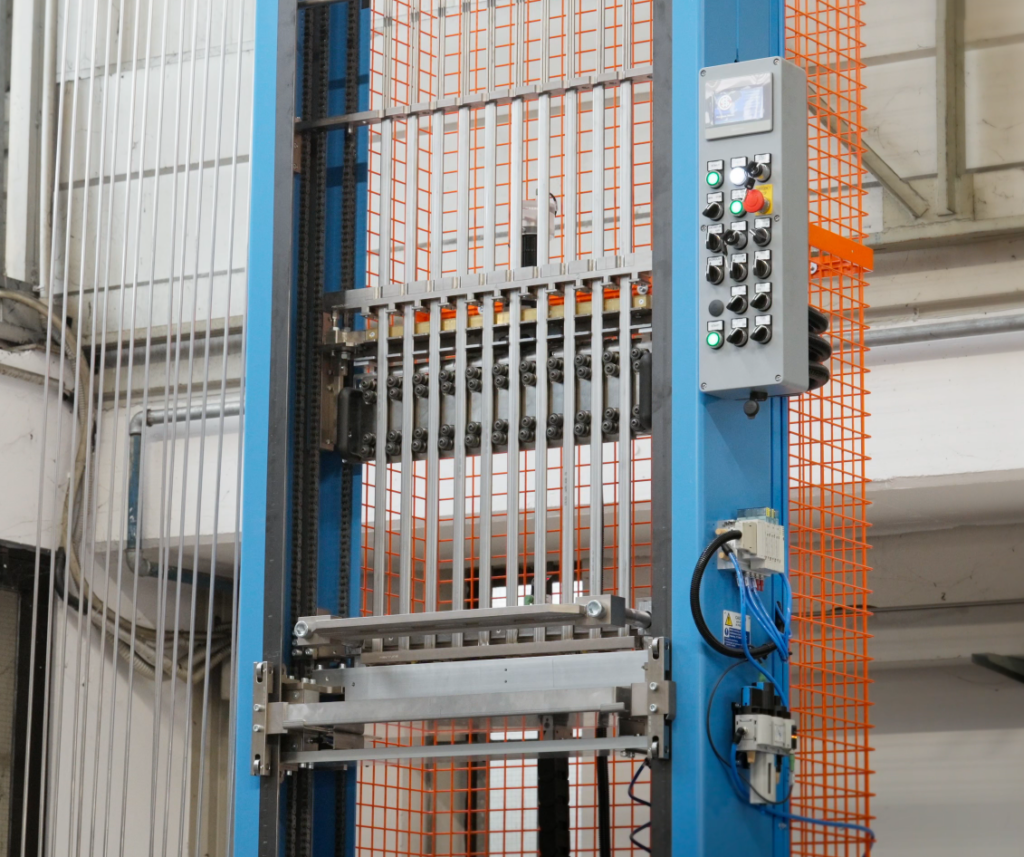

This machine is built for filling oval tubular heating elements with magnesium oxide, in either single-tube or through-pin versions. It runs 10 tubes per cycle for larger cross-section tubes (e.g., Ø.948″ × .324″) or 15 tubes per cycle for smaller cross-section tubes (e.g., Ø.425″ × .346″). It’s the ideal solution for manufacturers who demand precision, repeatability, and high productivity in the filling stage.

Precise, efficient filling

At the heart of the machine is the magnesium oxide dispensing unit, engineered for high filling speeds while keeping the process fully under control. The dispenser opens and closes without scattering material, delivering a clean, consistent result over time.

To optimize compaction, the machine can vibrate the heating element for an adjustable time at two points in the cycle: at the bottom, when filling starts, and at the top, when it ends. The dwell at the bottom ensures the oxide reaches and completely fills the lower end of the element. This is where the ceramic spacers that hold the coil in place make it harder for the powder to get through, so the oxide is already well compacted before the vibration carriage starts moving up. The dwell at the top increases fill density in the upper section. The oxide-free space at the top of the tube is also adjustable to meet different production specifications.

Electromechanical vibration system

Vibration is generated by an electromechanical system that delivers consistently symmetrical, stable oscillations regardless of the frequency setting. A DC motor produces the motion, and its rotation speed directly sets the vibration frequency, allowing fine, repeatable process control.

The machine also features a unique vibration control system: two rollers clamp the tube on both sides at staggered positions. This keeps vibration from traveling down from the vibration comb to the lower part of the element, where it could shift the coil. That’s essential for these heating elements, where the clearance between coils, and between coil and tube, is tight.

Optional

Discover all the machine’s options

  • Custom spacer element

It raises the filling machine to a predefined height.

  • Mod. 135/00.000010: max spacer length 2000 mm
  • Mod. 135/00.000020: max spacer length 4000 mm
  • Mod. 135/00.000030: max spacer length 6000 mm
  • It raises the filling machine to a predefined height.

    • Mod. 135/00.000010: max spacer length 2000 mm
    • Mod. 135/00.000020: max spacer length 4000 mm
    • Mod. 135/00.000030: max spacer length 6000 mm
Filling Machine for Flat and Oval Tube Heating Elements

Technical specifications

Discover all the details of the machine

Dimensions
63x28x47" (1590x700x1200mm)
Weight
1500 kg
Pneumatic supply
6 Bar
Installed power
4 KVA
Max. tube section
depends on number of tubes
Min. tube section
to be defined
Max. tube length
depends on model
Min. tube length
20" (500 mm)
Tubes per cycle
10 or 15
