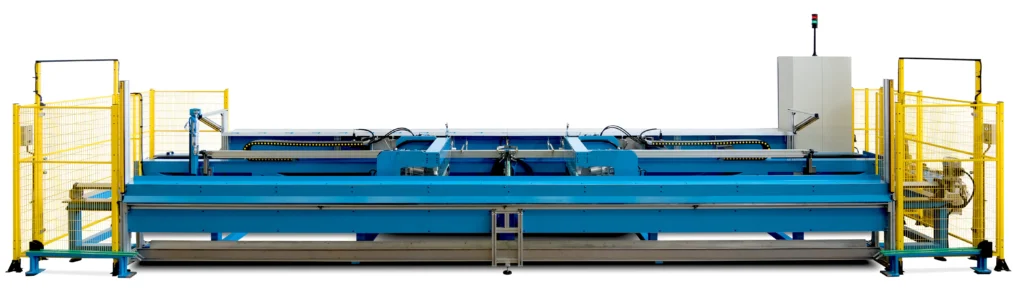

End Finishing & Stretching Transfer Machine for Tubular Heating Elements

Finish, stretch, and test tubular heating elements in a single automated pass.

If you’re producing tubular heating elements, you know how much time gets lost moving parts between separate finishing stations. This transfer machine puts pin cutting, chamfering, stretching, and electrical testing on one line, so your elements go from raw tube to ready‑for‑assembly without a single manual handoff in between.

You get consistent pin lengths, clean chamfered ends, precise final sizing, and a fully tested part at the end of the cycle. And when you need to switch to a different element length, you simply update the machine settings; there’s no retooling and no lost shift waiting on a changeover.

End Finishing & Stretching Transfer Machine for Heating Elements

Advantages

The concrete advantages that make the difference

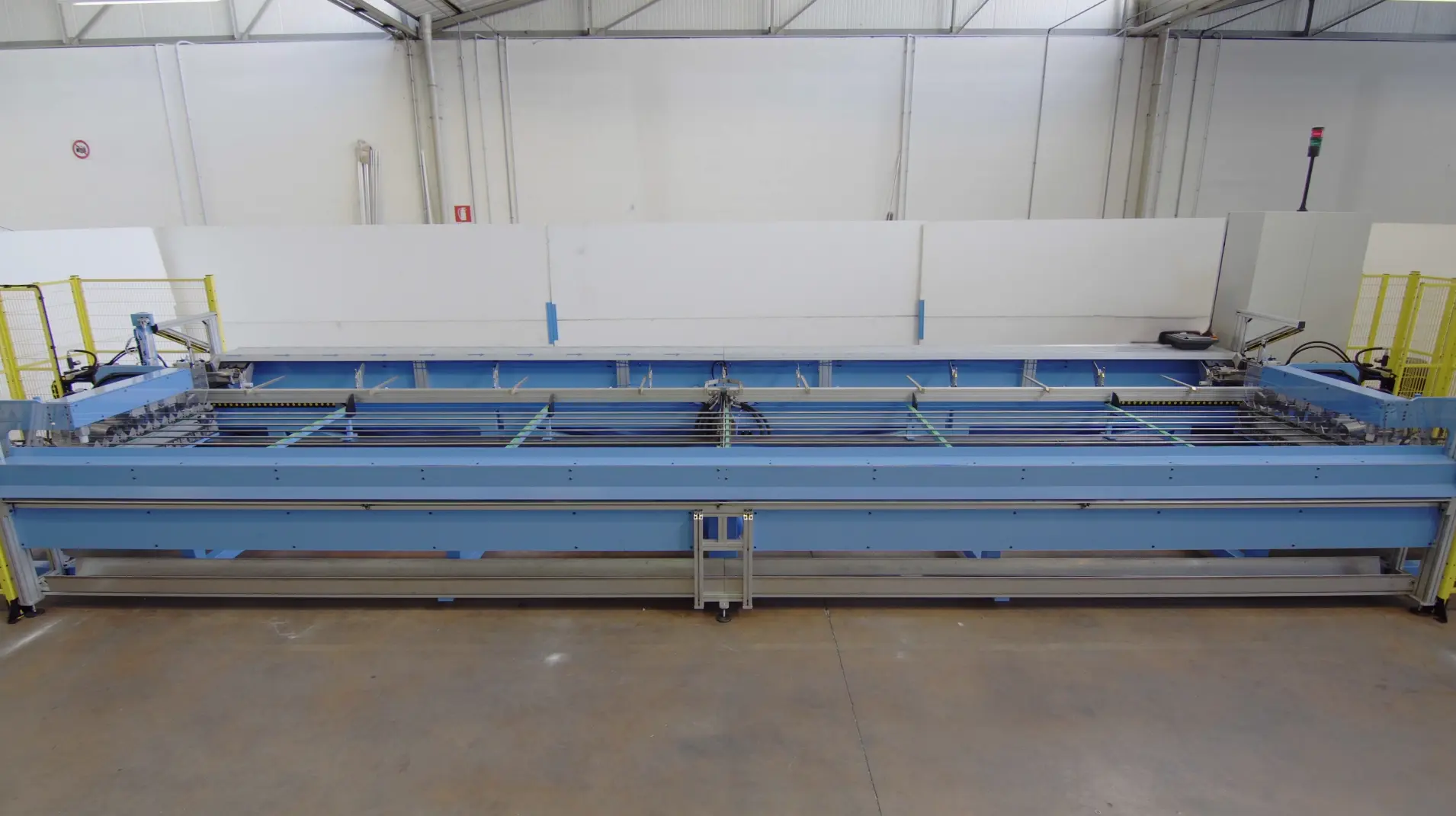

Switch lengths without stopping production

Running multiple heating element lengths on the same line used to mean mechanical changeovers and downtime. Here, you adjust parameters on the control panel and keep running. That flexibility pays off fastest when your order mix changes often.

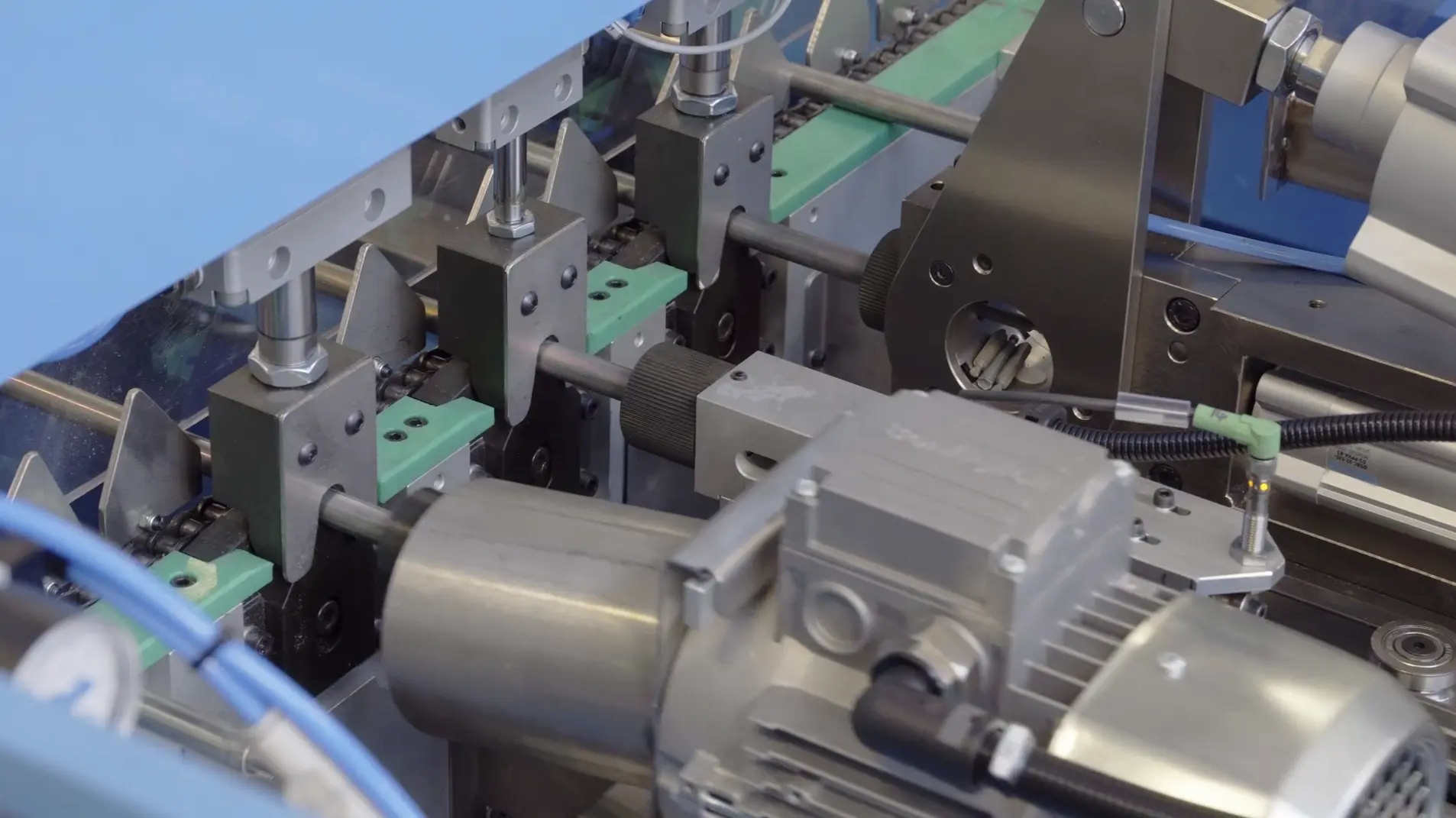

One line, five operations, fewer handoffs

Pin cutting, end finishing, stretching, electrical testing, and unloading all happen in sequence on a single machine. Fewer transfers between stations means fewer chances for damage, less floor space tied up in work‑in‑progress, and a simpler line for your operators to run.

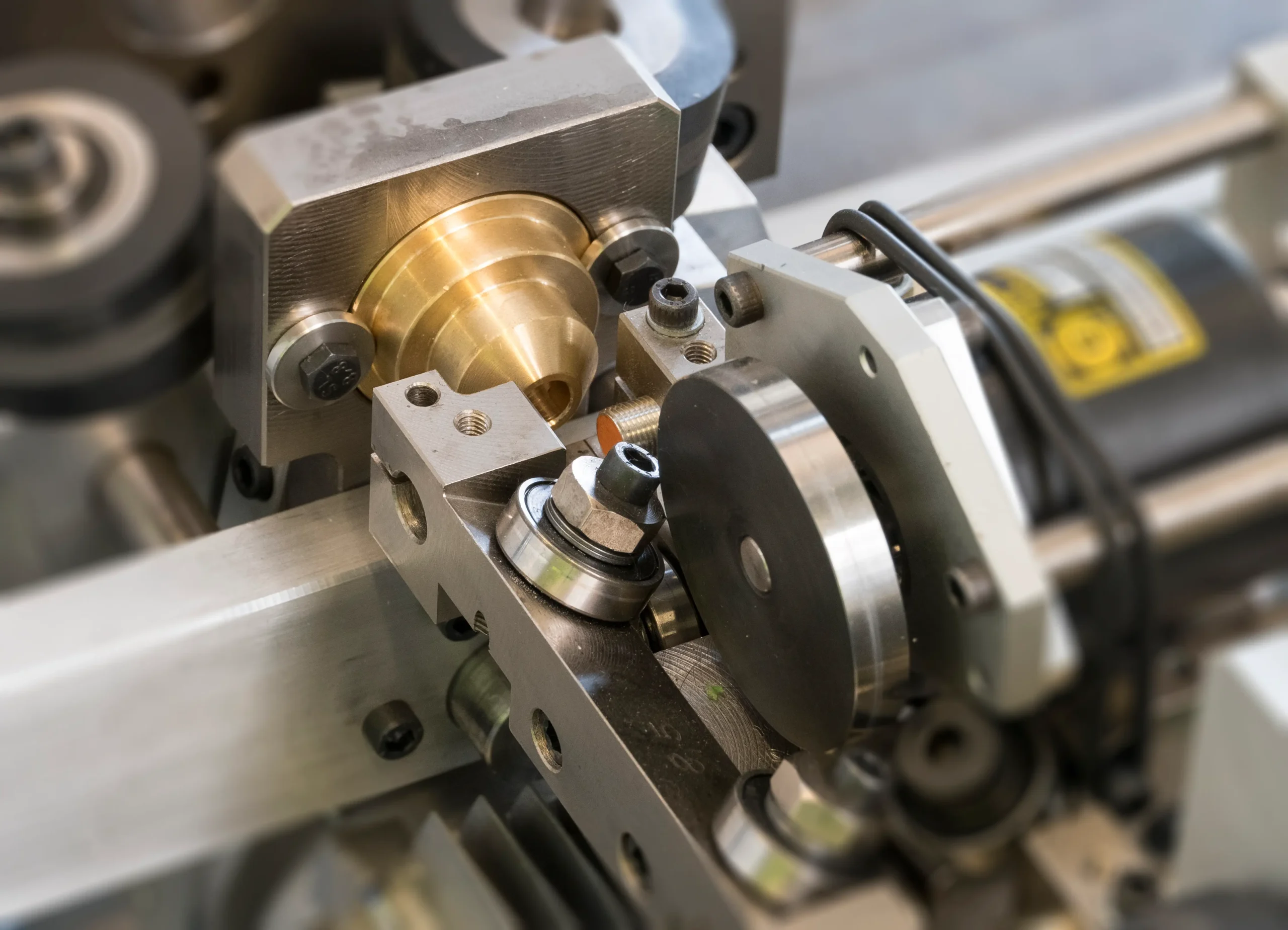

Quality checked as you go, not after the fact

Built‑in sensors monitor each stage while the machine runs, so you catch a bad cut or an out‑of‑spec length before it reaches the next station, not after a batch has already shipped. That’s what keeps output consistent even when you’re running high volumes.

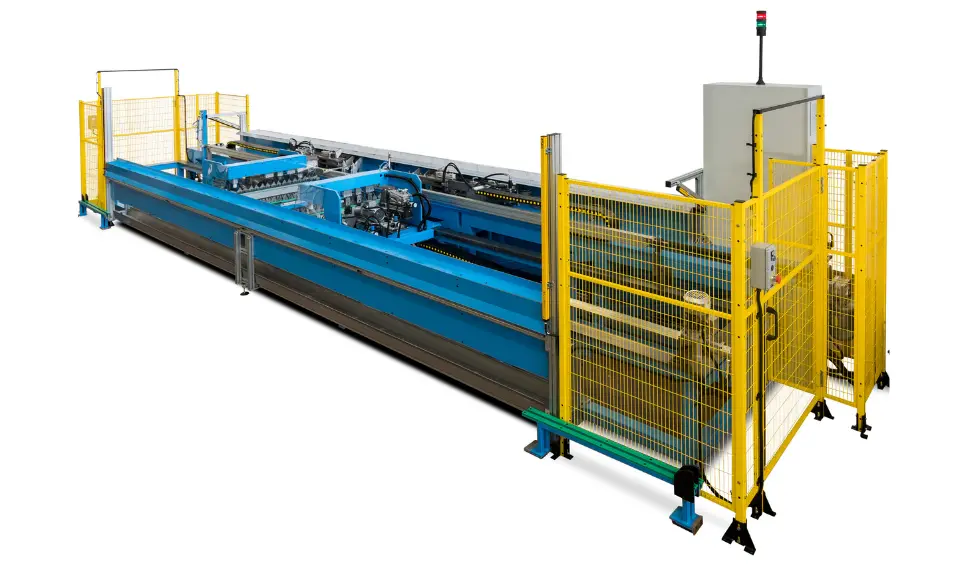

Details

Your heating elements move through a series of stations, carried automatically from one to the next by the machine’s transfer system:

  1. Loading — the operator places each element into the machine.
  2. Pin cut‑to‑length — the terminal pin is trimmed to the exact length you specify.
  3. Cut inspection — every cut is checked against your quality and dimensional standards before moving on.
  4. Chamfering — the pin end is finished for a clean, assembly‑ready profile. Standard tooling handles smooth pins produced by roll‑forming; tooling for threaded pins is also available, machining back part of the cut end and re‑chasing the thread.
  5. Stretching to final length — the element is stretched to its calibrated finished length.
  6. Electrical testing — the finished element is tested electrically before it leaves the line.
  7. Automatic unloading — finished elements are unloaded at the end of the cycle, ready for the next stage of your process.

Whether you’re running smooth roll‑formed pins or threaded pins, producing a single length or several, this machine is built to keep pace with your schedule and hand you a tested, finished part at the end of every cycle.
